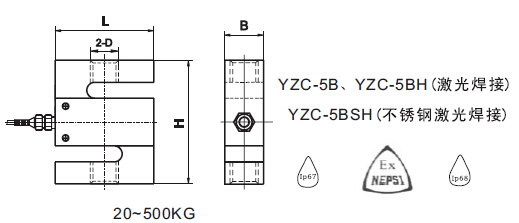

量程	L	H	B	D
20kg〜30kg	51	64	12.7	M8X1.25
50kg-750kg	50.8	76.2	19.05	M12X1.75
1t	50.8	76.2	25.4	M12X1.75
1.5t	50.8	76.2	25.4	M16X1.5
2t~3t	76.2	108	31.8	M20X1.5
5t	76.2	108	36.98	M24X2
7.5t	100	139.7	36.98	M24X2
10t	177.8	125.5	50.8	M30X2
20t	140	170	81	M42X3
30t	230	190	80	M42X3

应用         Application                                            　        吊钩秤      Crane scale

型号         Model                                                    　      YZC-5B(516)

量程         Capacity                                        t                见上表（As above)

输出灵敏度    Rated output                                   MV/V              2.0±0.004      3.0±0.004 (可选）

精度等级     Accuracy class                                    　               C2                  C3

最大检定分度数Maximum number of verification intervals        Nmax              2000     3000

最 检定分度值Minimum load cell verification intervals         Vmin              EMax/5000 EMax/7500

综合误差     Combined erro                                     %RO               < ±0.030    < ±0.020

蠕变         Creep                                             %RO/30min           0.02

温度灵敏度漂移Temperature effect on sensitivity    %RO/°C     0.003              0.0016

温度零点漂移  Temperature effect on zero           %RO/°C     0.005              0.002

零点平衡     Zero balance                                        %RO               ±1.0

输入阻抗     Input resistance                                  Ω                    365±5

输出阻抗     Output resistance                                 Ω                    350±3

绝缘电阻     Insulation resistance                            MΩ(50V)                5000

推荐激励电压  Recommended excitation voltage                   V                     10 〜15

温度补偿范围  Compensated temperature range                    °c                    10〜+40

工作温度范围  Operating temperature range                      °c                    35 〜+80

安全超载能力  Safe overload                                     %RO                   150

极限超载范围  Ultimate overload                                 %RO                   200

传感器材料    Load cell material                                 　                   合金钢 Alloy steel 不绣钢 Stainless steel(IP68)

接线电缆     Connecting cable                                 　                      20kg~2t Ø5.7X3.5m   2.5t-30t Ø5.7X6m

接线方式     Method of connecting wire                   　                          红输入（+)黑输入（-)绿输出（+)白输出（-)
